CIFAR10Partitioner

For CIFAR10, we provides 6 pre-defined partition schemes. We partition CIFAR10 with the following parameters:

• targets is labels of dataset to partition

• num_clients specifies number of clients in partition scheme

• balance refers to FL scenario that sample numbers for different clients are the same

• partition specifies partition scheme name

• unbalance_sgm is parameter for unbalance partition

• num_shards is parameter for non-iid partition using shards

• dir_alpha is parameter for Dirichlet distribution used in partition

• verbose controls whether to print intermediate information

• seed sets the random seed

Each partition scheme can be applied on CIFAR10 using different combinations of parameters:

• balance=None: do not specify sample numbers for each clients in advance

  • partition="dirichlet": non-iid partition used in Yurochkin et al. [6] and Wang et al. [8]. dir_alpha need to be specified in this partition scheme

  • partition="shards": non-iid method used in FedAvg [3]. Refer to fedlab.utils.dataset.functional.shards_partition() for more information. num_shards need to be specified here.

• balance=True: “Balance” refers to FL scenario that sample numbers for different clients are the same. Refer to fedlab.utils.dataset.functional.balance_partition() for more information. This partition scheme is from Acar et al. [5].

  • partition="iid": Random select samples from complete dataset given sample number for each client.

  • partition="dirichlet": Refer to fedlab.utils.dataset.functional.client_inner_dirichlet_partition() for more information. dir_alpha need to be specified in this partition scheme

• balance=False: “Unbalance” refers to FL scenario that sample numbers for different clients are different. For unbalance method, sample number for each client is drown from Log-Normal distribution with variance unbalanced_sgm. When unbalanced_sgm=0, partition is balanced. This partition scheme is from Acar et al. [5].

  • partition="iid": Random select samples from complete dataset given sample number for each client.

  • partition="dirichlet": Given sample number of each client, use Dirichlet distribution for each client’s class distribution. dir_alpha need to be specified in this partition scheme

To conclude, 6 pre-defined partition schemes can be summarized as:

• Hetero Dirichlet (non-iid)

• Shards (non-iid)

• Balanced IID (iid)

• Unbalanced IID (iid)

• Balanced Dirichlet (non-iid)

• Unbalanced Dirichlet (non-iid)

Now, we introduce how to use these pre-defined partition on CIFAR10 in FL setting with 100 clients, and provide statistical plots for each scheme.

First, import related package and basic setting:

import torch
import torchvision

import numpy as np
import pandas as pd
import matplotlib.pyplot as plt
import seaborn as sns
import sys

from fedlab.utils.dataset.partition import CIFAR10Partitioner
from fedlab.utils.functional import partition_report, save_dict

num_clients = 100
num_classes = 10
seed = 2021
hist_color = '#4169E1'

Second, we need to load CIFAR10 dataset from torchvision:

trainset = torchvision.datasets.CIFAR10(root="../../../../data/CIFAR10/",
                                        train=True, download=True)

Hetero Dirichlet

Perform partition:

hetero_dir_part = CIFAR10Partitioner(trainset.targets,
                                     num_clients,
                                     balance=None,
                                     partition="dirichlet",
                                     dir_alpha=0.3,
                                     seed=seed)

hetero_dir_part.client_dict is a dictionary like this：

hetero_dir_part.client_dict= { 0: indices of dataset,
                               1: indices of dataset,
                               ...
                               100: indices of dataset }

For visualization and check partition result, we generate partition report for current partition, and save it into csv file:

csv_file = "./partition-reports/cifar10_hetero_dir_0.3_100clients.csv"
partition_report(trainset.targets, hetero_dir_part.client_dict,
                 class_num=num_classes,
                 verbose=False, file=csv_file)

Report generated here is like:

Class frequencies:
client,class0,class1,class2,class3,class4,class5,class6,class7,class8,class9,Amount
Client   0,0.170,0.00,0.104,0.00,0.145,0.004,0.340,0.041,0.075,0.120,241
Client   1,0.002,0.015,0.083,0.003,0.082,0.109,0.009,0.00,0.695,0.00,863
Client   2,0.120,0.759,0.122,0.00,0.00,0.00,0.00,0.00,0.00,0.00,526
...

which can be easily parsed by csv.reader() or pandas.read_csv():

hetero_dir_part_df = pd.read_csv(csv_file,header=1)
hetero_dir_part_df = hetero_dir_part_df.set_index('client')
col_names = [f"class{i}" for i in range(num_classes)]
for col in col_names:
    hetero_dir_part_df[col] = (hetero_dir_part_df[col] * hetero_dir_part_df['Amount']).astype(int)

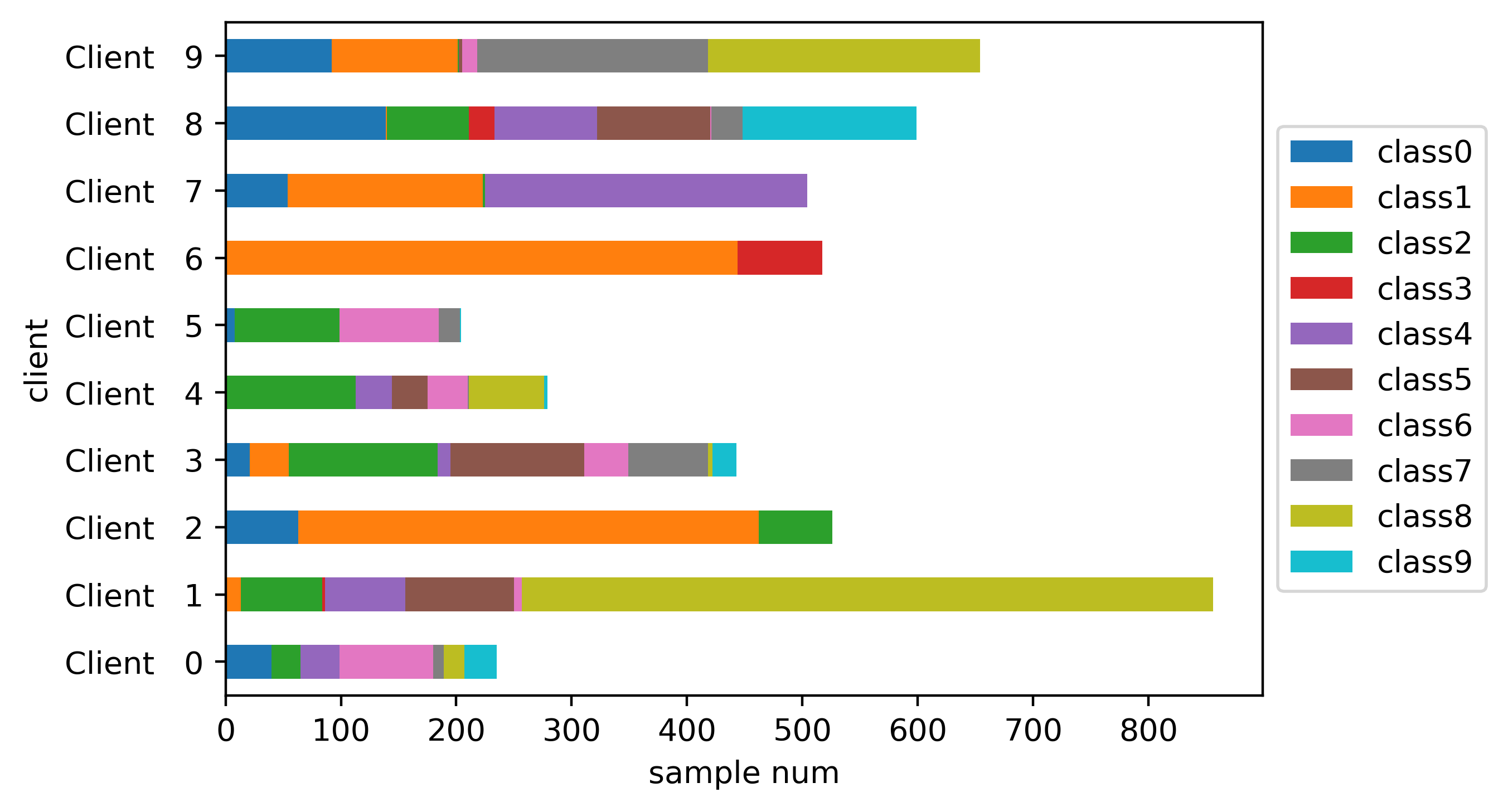

Now, select the first 10 clients for class distribution bar plot:

hetero_dir_part_df[col_names].iloc[:10].plot.barh(stacked=True)
plt.tight_layout()
plt.xlabel('sample num')
plt.savefig(f"./imgs/cifar10_hetero_dir_0.3_100clients.png", dpi=400)

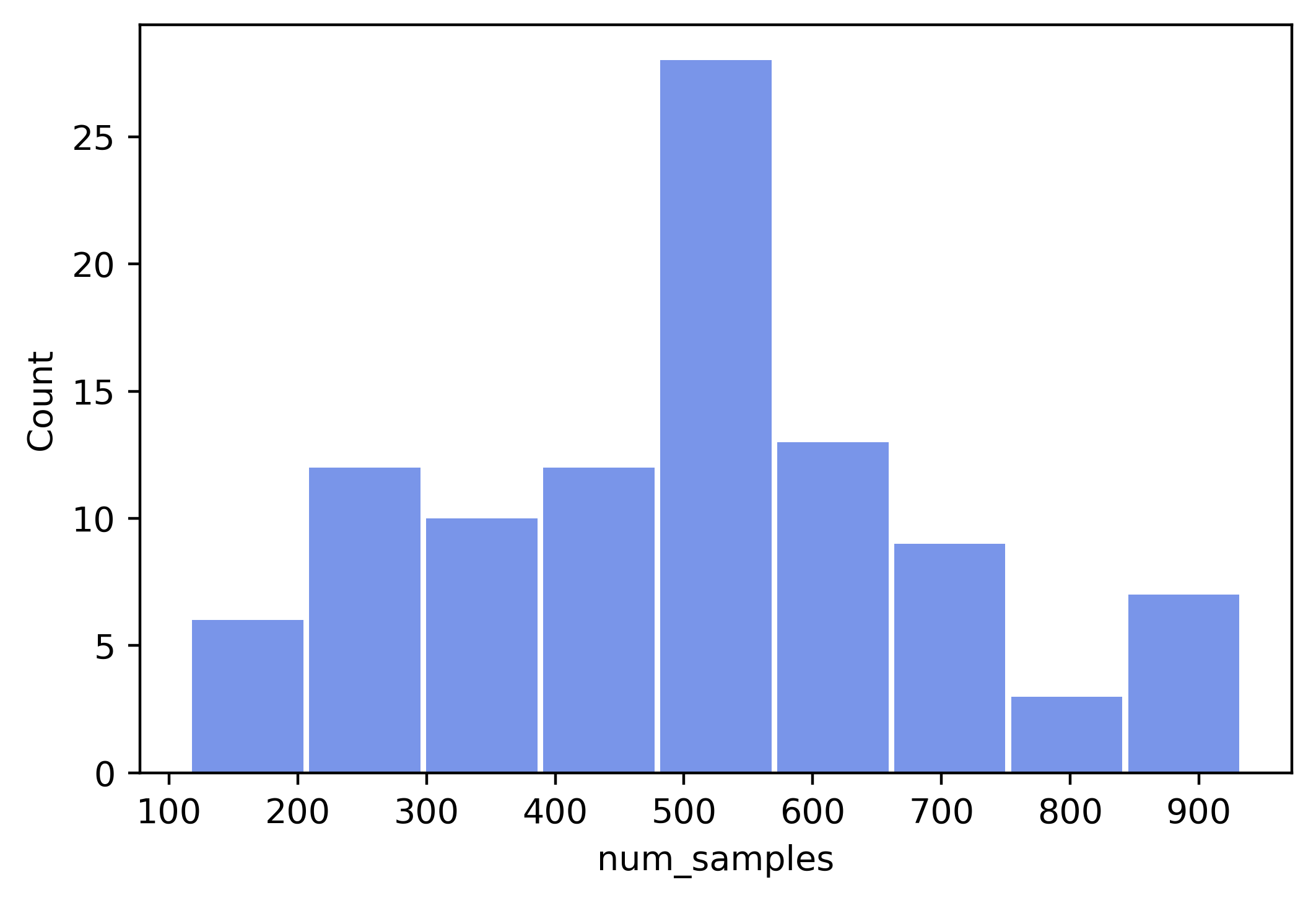

We also can check sample number statistic result for all clients:

clt_sample_num_df = hetero_dir_part.client_sample_count
sns.histplot(data=clt_sample_num_df,
             x="num_samples",
             edgecolor='none',
             alpha=0.7,
             shrink=0.95,
             color=hist_color)
plt.savefig(f"./imgs/cifar10_hetero_dir_0.3_100clients_dist.png", dpi=400, bbox_inches = 'tight')

Shards

Perform partition:

num_shards = 200
shards_part = CIFAR10Partitioner(trainset.targets,
                                 num_clients,
                                 balance=None,
                                 partition="shards",
                                 num_shards=num_shards,
                                 seed=seed)

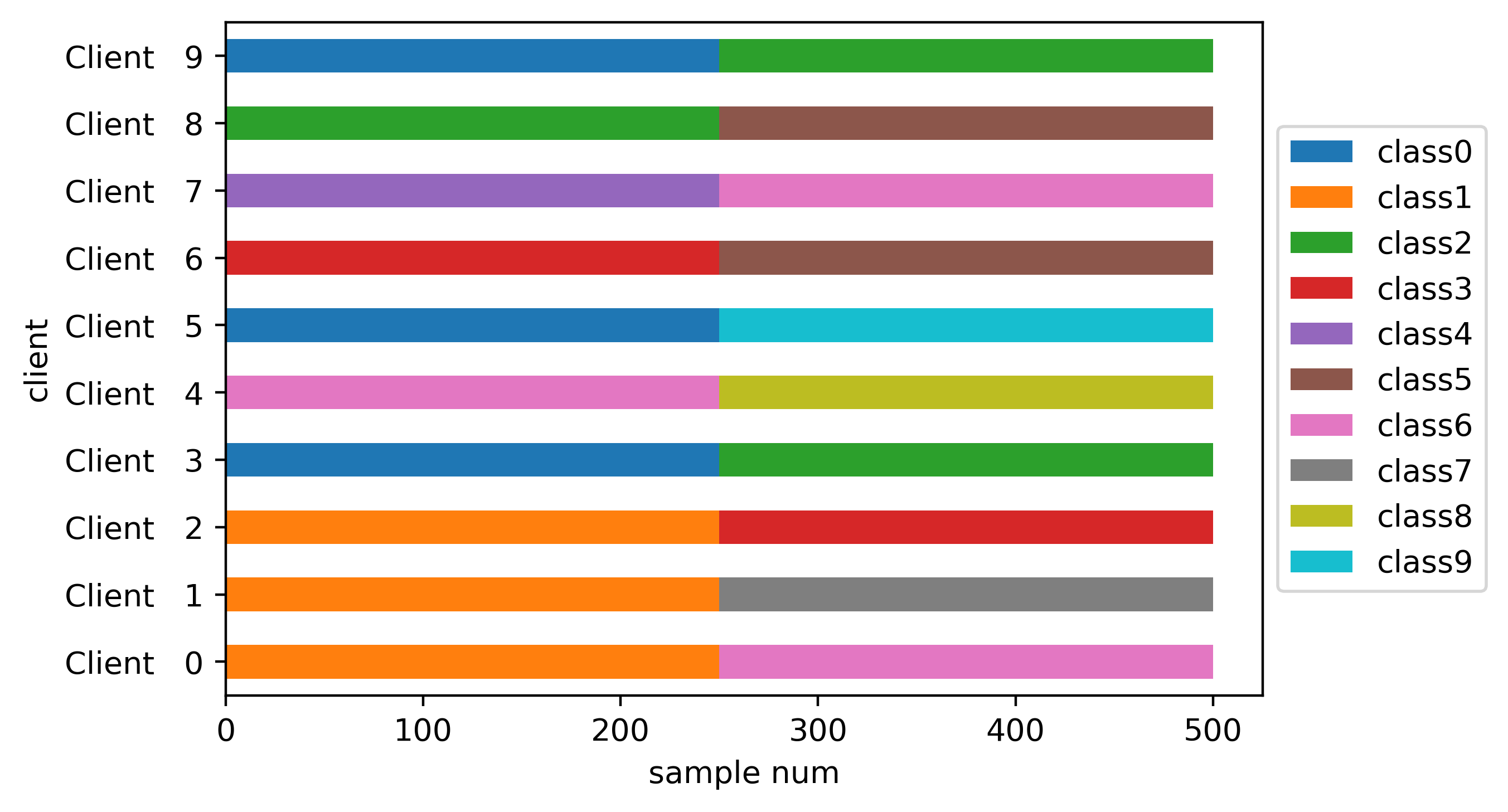

Class distribution bar plot:

Balanced IID

Perform partition:

balance_iid_part = CIFAR10Partitioner(trainset.targets,
                                      num_clients,
                                      balance=True,
                                      partition="iid",
                                      seed=seed)

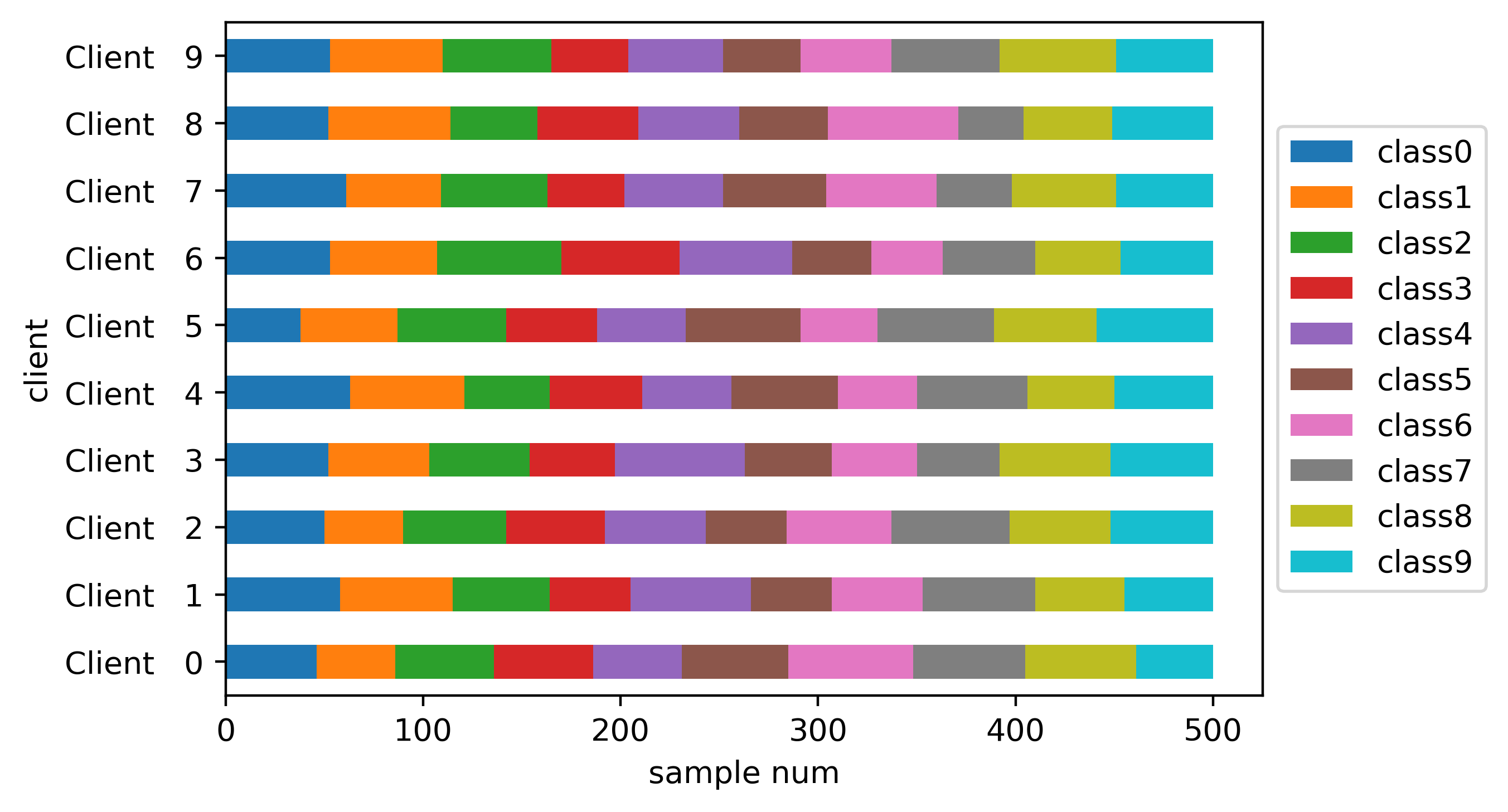

Class distribution bar plot:

Unbalanced IID

Perform partition:

unbalance_iid_part = CIFAR10Partitioner(trainset.targets,
                                        num_clients,
                                        balance=False,
                                        partition="iid",
                                        unbalance_sgm=0.3,
                                        seed=seed)

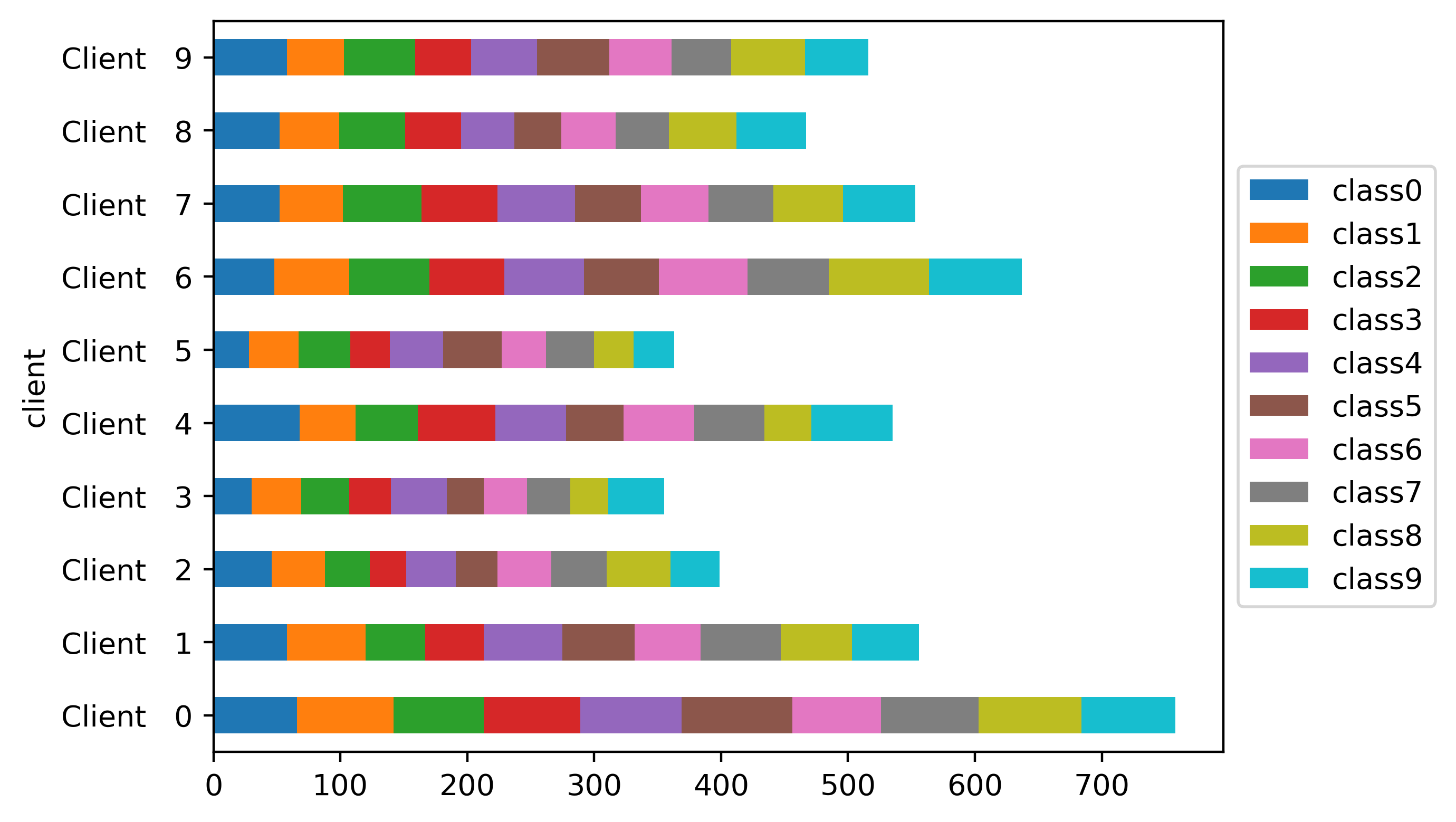

Class distribution bar plot:

Sample number statistic result for clients:

Balanced Dirichlet

Perform partition:

balance_dir_part = CIFAR10Partitioner(trainset.targets,
                                      num_clients,
                                      balance=True,
                                      partition="dirichlet",
                                      dir_alpha=0.3,
                                      seed=seed)

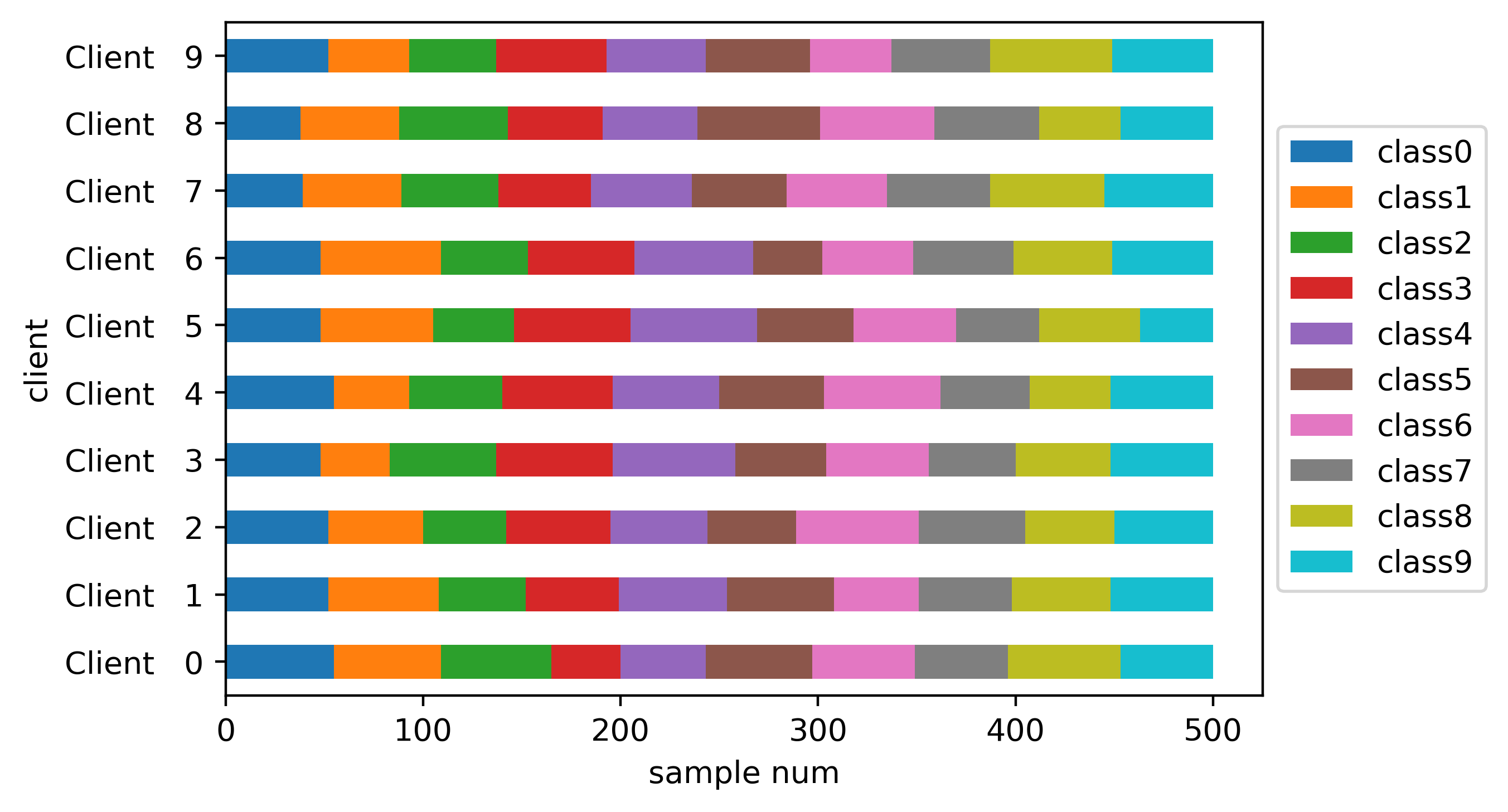

Class distribution bar plot:

Unbalanced Dirichlet

Perform partition:

unbalance_dir_part = CIFAR10Partitioner(trainset.targets,
                                        num_clients,
                                        balance=False,
                                        partition="dirichlet",
                                        unbalance_sgm=0.3,
                                        dir_alpha=0.3,
                                        seed=seed)

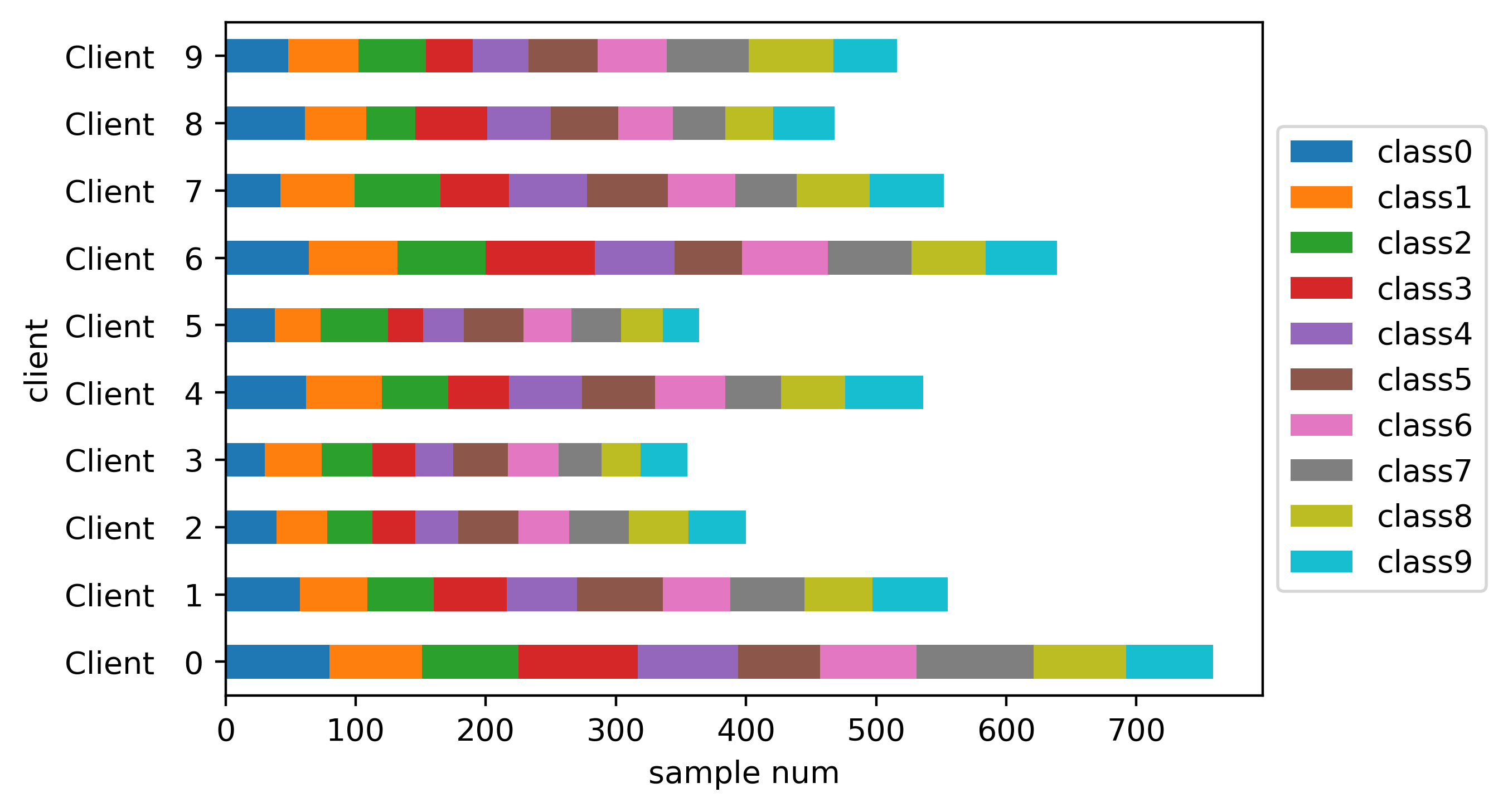

Class distribution bar plot:

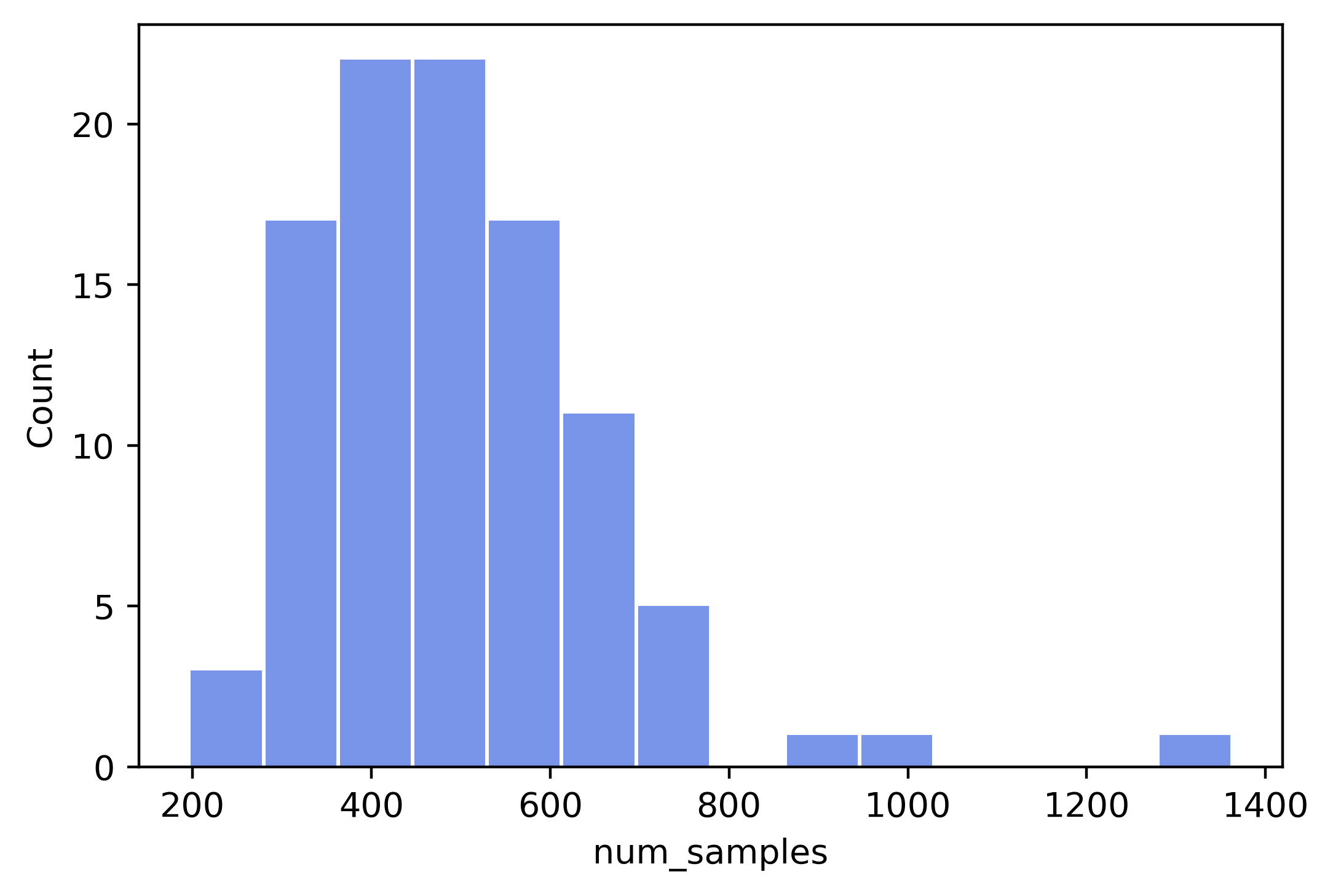

Sample number statistic result for clients:

Note

For complete usage example of CIFAR10Partitioner, check FedLab benchmark datasets part.

SubsetSampler

By using torch’s sampler, only the right part of the sample is taken from the overall dataset.

from fedlab.utils.dataset.sampler import SubsetSampler

train_loader = torch.utils.data.DataLoader(trainset,
                                           sampler=SubsetSampler(indices=partition[client_id], shuffle=True),
                                           batch_size=batch_size)

There is also a similar implementation of directly reordering and partition the dataset, see fedlab.utils.dataset.sampler.RawPartitionSampler for details.

In addition to dividing the dataset by the sampler of torch, dataset can also be divided directly by splitting the dataset file. The implementation can refer to FedLab version of LEAF.
